DX51D Galvanized Steel PPGI
DX51D Galvanized Steel PPGI
SteelPRO Group supplies galvanized steel products such as EN 10346 PPGI coils, plates, pipes and roofing sheets that can be processed directly, which can effectively replace wood, save energy and prevent pollution. We also supply various grades of galvanized steel raw materials and provide customized services. Contact us to get factory wholesale prices.
- Standards: EN 10346, ASTM A653, GB, DIN, JIS
- Grades: DX51D, DX51D+Z, SGCC, SGCD, SGCH, CS Type A/B/C
- Technology: Cold rolling process, hot dip galvanizing process, passivation treatment, etc.
- Substrate: Cold rolled substrate, hot dip galvanized substrate, electro galvanized substrate
- Type: Coated, embossed and printed boards
- Certification: ISO 9001, CE
DX51D Galvanized Steel PPGI
DX51D Galvanized Steel PPGI
Product Specifications
Product Specifications

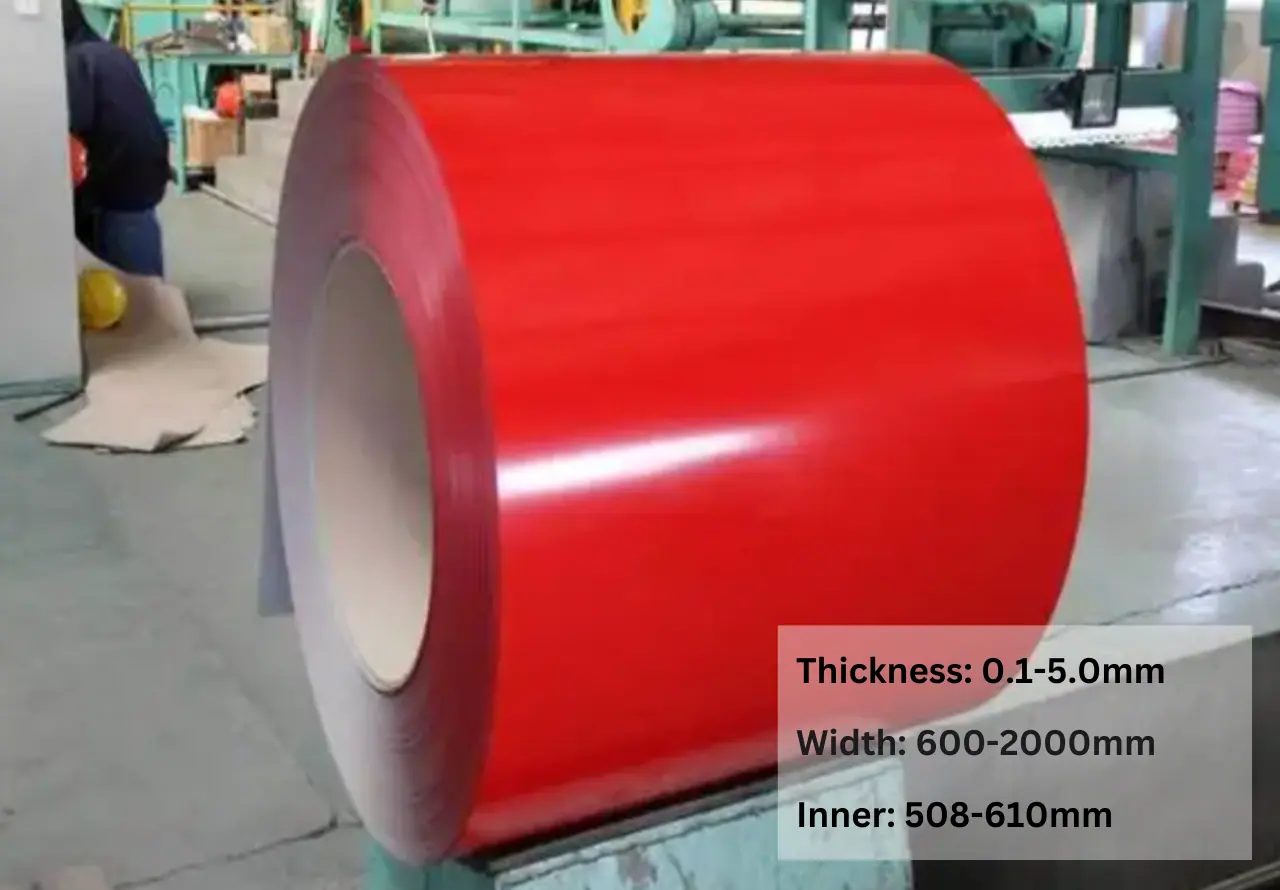

| Product Name | DX51D Hot dip galvanized steel PPGI |
| Thickness | 0.1mm-5mm, Customized |
| Width | 600mm – 2000mm, Customized
Regular Width: 914mm, 1000mm, 1219mm, 1220mm, 1250mm |
| Coil Inner | 508mm – 610mm, Customized |
| Zinc Layer | 30g – 275g/m² |
| Coating Thickness | Top Coating: 15μm-25μm;
Back Coating: 5μm-20μm. |
| Surface Color | According to required RAL No. |
| Coating Material | Polyester (PE), Silicone Polyester (SMP), High Durable Polyester (HDP), Fluoropolymer (PVDF) |
| Painting structure | No coating, single-sided coating, double-sided coating |
| Spangle | Big, regular, mini, and zero spangles |
| Test | Zinc Coating Thickness Test, Bend, Cross-hatch, Salt Spray Test, Spectrophotometry, UV Aging, Temperature-Humidity Cycle, etc. |
| Surface Treatment | anti-finger print/skin pass/oiled/dry/chromated/Embossed/Lamination |
| Hardness | Soft (normal), hard, full hard(G300-G550) |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Invoicing | By actual weight |
| Delivery Time | 7-15 days |
| Payment | T/T, L/C, Credit Card |
| Port | Tianjin, Qingdao or according to your requirement |
| Packaging Details | In bundles, in bulk, customized packing |
Chemical Compositions
Chemical Compositions
| Element | Carbon (C) | Silicon (Si) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) | Aluminum (Al) |
|---|---|---|---|---|---|---|
| Content (%) | ≤ 0.12 | ≤ 0.50 | ≤ 0.60 | ≤ 0.10 | ≤ 0.045 | ≤ 0.30 |
Mechanical properties
Mechanical properties
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 270 – 500 MPa |
| Yield Strength (MPa) | ≥ 140 MPa |
| Elongation (%) | ≥ 22% |
| Vickers Hardness (HV) | Approx. 90 – 120 HV |
| Brinell Hardness (HB) | Approx. 50 – 70 HB |
| Rockwell Hardness (HRB) | ≤ 85 HRB |
| Elastic Modulus (GPa) | Approx. 210 GPa |
Industries & Applications
Industries & Applications
- Building and Construction: Roofing, wall cladding, and ceiling panels.
- Automotive Industry: Car body panels and interior parts.
- Home Appliances: Washing machines, refrigerators, and air conditioning units.
- Furniture: Steel cabinets and shelving.
- Agricultural Equipment: Sheds, silos, and machinery.
- Scaffolding: Components for construction scaffolding.
- Packaging: Barrels and metal containers.
- Transportation: Truck and trailer bodies.
Other Infomation
Other Infomation
You can choose the appropriate coating material according to your needs. If you still have questions or find it difficult to make a decision, contact us and our experts will help you achieve the best use effect and cost-effectiveness.
- PE: Low price, rich colors, good processability, but average corrosion and UV resistance, suitable for indoor and general outdoor environments, such as building roofs, walls, and home appliance housings.
- SMP: Good weather resistance and UV resistance, stable color, but poor flexibility, suitable for outdoor environments with high temperature and direct sunlight, such as industrial building exterior walls and roofs.
- HDP: Excellent UV resistance and weather resistance, good color retention, suitable for long-term outdoor exposure, such as building roofs and exterior wall panels, slightly higher cost.
- PVDF: Strongest corrosion resistance, UV resistance and weather resistance, long-term color and gloss retention, suitable for extreme environments such as coastal areas and chemical plants, high cost.
- PU: Good wear resistance, impact resistance and chemical corrosion resistance, good flexibility, suitable for high impact environments such as industrial use and transportation equipment, high price.
Our Inventory
Our Inventory
As a leading steel supplier and manufacturer, SteelPRO Group is dedicated to earning the trust of our customers by offering high-quality products and prompt responses. We maintain rigorous quality control, supported by an annual production capacity exceeding 1 million tons, efficient delivery systems, and tailored services.
Our extensive range of products, including steel pipes, plates, coils, bars, strips, stainless steel, carbon steel, high-strength steel, nuclear-grade steel, galvanized steel, and steel for wind and solar energy, aligns with international standards and caters to the diverse requirements of our clientele.
Packing
Packing
We take a series of strict protection measures when exporting DX51D PPGI. First, we use waterproof packaging materials and seal the packages to ensure that the products are moisture-proof. Secondly, we add sturdy wooden boxes or metal frames to the steel plates to prevent physical damage during transportation. At the same time, in view of the needs of long-distance transportation, anti-rust oil is applied to avoid rust. We also arrange the stacking reasonably to ensure that the steel plates are placed horizontally and prevent excessive stacking to ensure that the products are intact during transportation.
Our Service
Our Service
1.Welding
2.Metal Fabrication
3.CNC Machining
4.Lathe
5.Forming
6.OEM/ODM
7.Quenching
8.Tempering
Do you offer custom sizes and coatings?
Yes, we offer custom galvanized steel products based on your specific needs, including different sizes, thicknesses, and coating options (galvanized or pre-painted finishes).
What types of galvanized steel products do you offer?
We offer galvanized steel sheets, coils, and pipes in both hot-dip and electro-galvanized options. We also offer pre-painted galvanized steel (PPGI) for applications that require an aesthetic finish and extra protection.
How do you ensure the quality of galvanized steel?
We follow strict quality control procedures throughout the manufacturing process. Our galvanized steel products comply with international standards such as ASTM, EN and JIS, and we conduct regular tests to ensure that they meet customer specifications for strength, coating thickness and durability.
Do you provide a delivery service? How long is the delivery time?
Yes, we provide a reliable delivery service to ensure that your products arrive on time. Delivery times vary depending on the product and order size, but we strive to complete delivery of most orders within 2 to 4 weeks. Expedited service is available upon request.
How long is the service life of galvanized steel?
The service life of galvanized steel depends on the environment. In non-corrosive environments, galvanized steel can last up to 50 years, while in more corrosive environments, galvanized steel will still provide excellent protection for 20-25 years.
What is your minimum order quantity (MOQ) for galvanized steel products?
Our minimum order quantity (MOQ) varies depending on the specific product and customization requirements. Generally, we can accept both small and large orders. Please contact our sales team for details on the specific MOQ based on your needs.
