A36 Galvanized Steel Wire
A36 Galvanized Steel Wire
Galvanized steel manufacturer SteelPRO Group produces high-quality A36 hot-dip galvanized steel wire products that meet ASTM international standards, have excellent corrosion resistance and strength, and are suitable for a variety of applications such as construction, agriculture, and industry. We use advanced hot-dip galvanizing processes to produce steel wires of different diameters and specifications to meet the specific needs of customers, and provide reliable service support to ensure the long-term performance and stability of the products. We also provide electro-galvanized steel wire, plates, pipes, roof panels, PPGI and other galvanized steel products.
- Standards: ASTM A36, ASTM A641, GB/T 3428, etc.
- Grades: A36, Q195, Q235, G450, G550, etc.
- Wire gauge: 8-24 gauge, 14 gauge, 16 gauge, 12 gauge, etc.
- Technology: Hot dip galvanizing
- Special Use: Marine engineering, agricultural greenhouses, electrical grounding wires, protective nets, etc.
- Form: Coil, Spool, Rope, Mesh, etc.
- Certification: ISO 9001, CE
A36 Galvanized Steel Wire
A36 Galvanized Steel Wire
Product Specifications
Product Specifications
| Product Name | A36 Galvanized Steel Wire | ||

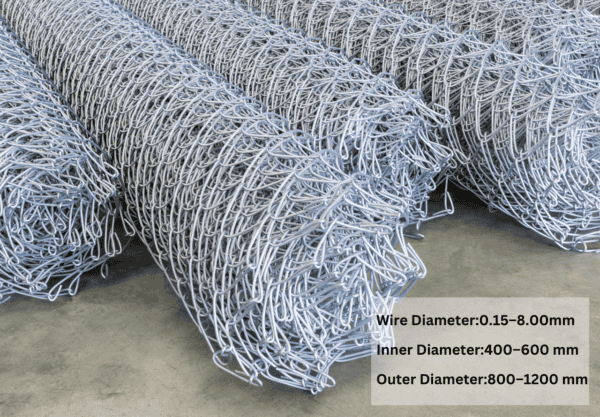

| Wire Diameter | 0.15mm – 8.00mm | ||
| Wire Coil Weight | 20-1200kg | ||
| Wire Coil Length | Varies by coil weight, common lengths include 100 m, 200 m, 300 m, Customized | ||
| Coil Outer Diameter | 800 – 1200 mm | ||
| Coil Inner Diameter | 400 – 600 mm | ||
| Zinc Layer | 20-400g/m², g30, g40, g60, g90, etc. | ||
| Elongation | ≥10% | ||
| Tensile strength | 400 – 550 MPa | ||
| Load strength | 100 – 1000 N (Depends on sight line) | ||
| Coating Material | Polyester (PE), Silicone Polyester (SMP), High Durable Polyester (HDP), Fluoropolymer (PVDF) | ||
| Surface Treatment | anti-finger print/skin pass/oiled/dry/chromated/Embossed/Lamination | ||
| Test | Zinc Coating Thickness Test, Adhesion Test, Peel, Bend, Salt Spray Test, Tensile Test, Elongation, etc. | ||
| Tolerance | ±1% | ||
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching | ||
| Invoicing | By actual weight | ||
| Delivery Time | 7-15 days | ||
| Payment | T/T, L/C, Credit Card | ||
| Port | Shanghai, Qingdao or according to your requirement | ||
| Packaging Details | In bundles, in bulk, customized packing | ||
Chemical Compositions
Chemical Compositions
| Element | Carbon (C) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) | Silicon (Si) |
|---|---|---|---|---|---|
| Composition (%) | 0.25 max | 0.60 – 0.90 | 0.04 max | 0.05 max | 0.40 max |
Mechanical properties
Mechanical properties
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 400 – 550 |
| Yield Strength (MPa) | 250 – 400 |
| Elongation (%) | ≥ 10 |
| Vickers Hardness (HV) | 130 – 160 |
| Brinell Hardness (HB) | 120 – 160 |
| Rockwell Hardness (HRB) | 55 – 80 |
| Elastic Modulus (GPa) | 200 |
Industries & Applications
Industries & Applications
- Construction and Structural Support: Used as reinforcing wire in concrete, structural supports, and tie wires due to its strength and corrosion resistance.

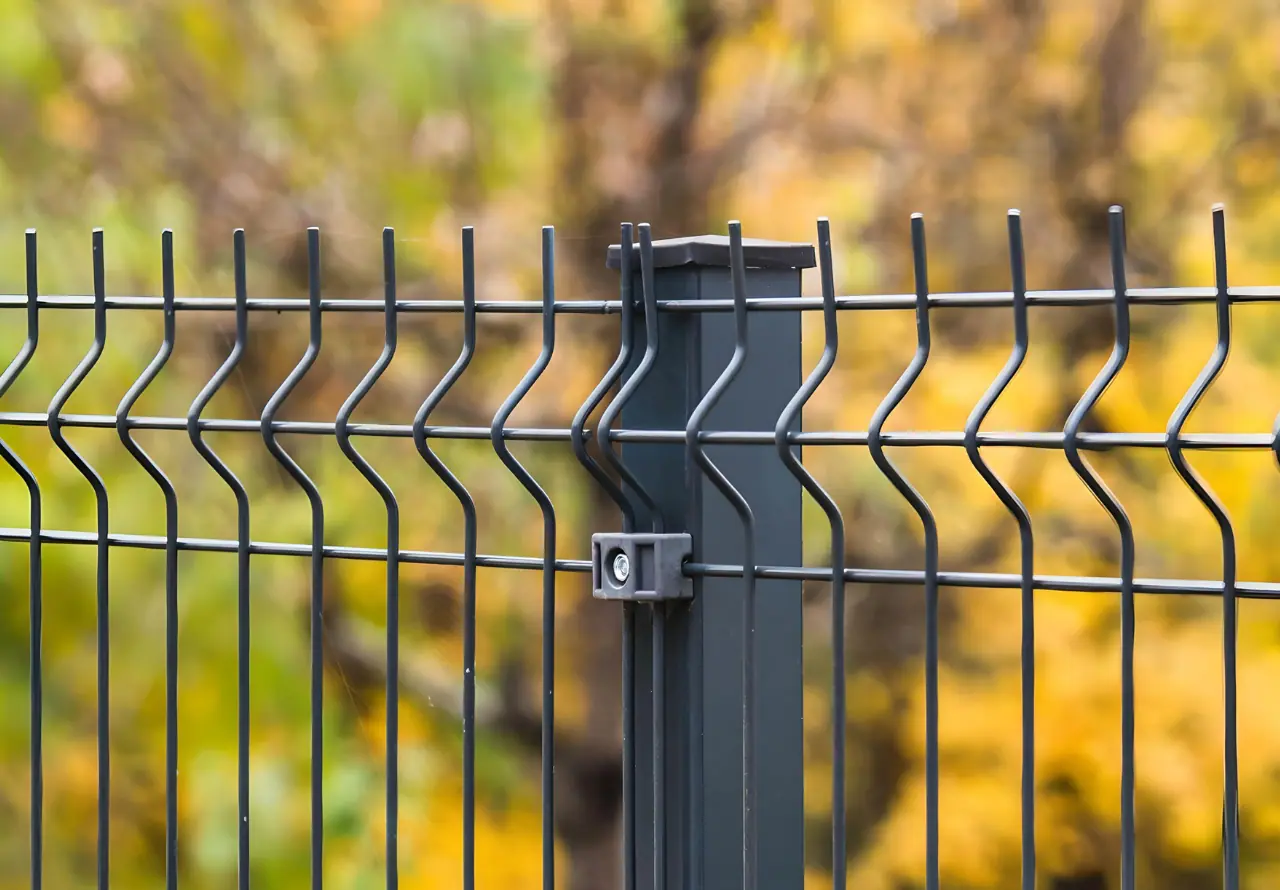

- Agricultural Fencing and Trellises: Ideal for farm fences, vineyard trellises, and animal enclosures, as it withstands outdoor conditions.
- Industrial Binding and Fastening: Commonly used for bundling and securing materials in warehouses, factories, and construction sites.
- Electrical Grounding: Serves as grounding wire for electrical systems, providing safety in grounding applications.
- Household DIY Projects: Suitable for various home improvement projects, including garden fences, decorative crafts, and hanging supports.
- Gardening and Landscaping: Frequently used to support plants, secure garden structures, and in landscaping designs for added durability.
- Automotive and Mechanical Repairs: Utilized for binding and reinforcing parts in automotive and mechanical maintenance and repairs.
Other Infomation
Other Infomation
When you buy our A36 galvanized steel wire, you will get:
- Excellent corrosion resistance: The strong zinc coating can effectively prevent rust. It can also maintain good condition in humid environments and has a long service life.
- High strength: Excellent tensile strength, can withstand greater pressure, very suitable for construction projects and fence construction. Not easy to break, providing a sense of security and reliability.
- Flexibility: It can be easily bent and shaped, suitable for various DIY projects and special applications.
- High cost performance: SteelPRO Group offers reasonable prices and excellent cost performance.
- Versatile: It can be used for support, fixing and many other purposes, suitable for various industries and fields, flexible and diverse.
Our A36 galvanized steel wire production process:
- Material selection: We use high-quality A36 steel as raw material.
- Wire drawing: The steel is drawn into thin wires to ensure its strength.
- Cleaning: The steel wire is cleaned to remove oil and impurities on the surface.
- Galvanizing: The cleaned steel wire is placed in molten zinc to allow the zinc coating to adhere firmly to the steel wire to prevent rust.
- Cooling and inspection: After the steel wire is cooled, we will check the quality to ensure that it meets the standards.
- Packing: Finally, the qualified steel wire is packaged and prepared for shipment.
*Quality inspection includes checking the appearance of the steel wire to ensure there are no defects; measuring the thickness of the galvanized layer to ensure corrosion protection; conducting tensile and bending tests to confirm the strength and toughness of the steel wire; and measuring weight and diameter to ensure that it meets specifications.
Our Inventory
Our Inventory
Choosing SteelPRO Group means choosing efficient production capacity and reliable quality assurance. We have multiple advanced production lines that can meet the needs of large-volume orders, and we have long-term cooperation with many well-known supply chain partners to ensure that every link from raw materials to finished products meets strict quality standards. Our production facilities not only have sufficient production capacity, but also have flexible customized production capabilities to quickly respond to different customer needs and adapt to various market standards and specifications.
Main products: A36 galvanized steel wire, steel pipes, steel plates, steel coils, steel bars, steel strips, stainless steel series, carbon steel series, high-strength steel series, nuclear grade steel, galvanized steel, steel for wind and solar energy, etc.
Packing
Packing
We provide professional packaging solutions for our products to ensure that they maintain their quality and integrity during long-distance transportation. All wire and steel products are wrapped with an inner layer of plastic film and secured with an outer layer of woven bags or wooden pallets to prevent moisture and damage. Our products have been exported to the Middle East, South America, Africa, Southeast Asia and other regions. The packaging method fully complies with international transportation standards to ensure that the goods arrive safely in the hands of customers.
Our Service
Our Service
1.Welding
2.Metal Fabrication
3.CNC Machining
4.Lathe
5.Forming
6.OEM/ODM
7.Quenching
8.Tempering
Is A36 steel wire tested before shipment?
Yes, each batch of A36 galvanized steel wire will undergo multiple rigorous tests such as tensile strength, galvanizing layer thickness and corrosion resistance before leaving the factory to ensure that the product meets quality standards and meets customer application needs.
Are SteelPRO's steel wire products internationally certified?
Our A36 galvanized steel wire meets international quality standards and has passed multiple certifications to ensure that the product meets industry requirements in terms of strength, galvanizing layer quality and safety, allowing customers to use it with more confidence.
Does SteelPRO support customized production?
Yes, we can provide customized steel wire size, surface treatment and packaging services according to the specific needs of customers to meet the needs of different application scenarios.
What are the standard packaging specifications of A36 steel wire?
Our A36 steel wire is usually packaged in the form of wire coils, and the weight and length of each coil can be customized according to customer requirements. The packaging method also includes plastic film and outer woven bags to ensure safety and stability during transportation.
Does A36 hot-dip galvanized steel wire require special treatment before use?
Generally, no special treatment is required, and A36 galvanized steel wire can be used directly. However, for some special application environments (such as acidic or highly corrosive locations), additional surface protection treatment is recommended.
Does SteelPRO offer discounts for large volume orders?
Yes, we offer preferential pricing plans for large volume customers and guarantee product quality and delivery time for bulk orders. Welcome to contact our sales team for more details.
