316 Stainless Steel Channel
316 Stainless Steel Channel
SteelPRO Group is a reliable supplier of 316 stainless steel channels from China:
We offer hot-rolled 316 stainless steel channels, cold-rolled 316 stainless steel channels, seamless 316 stainless steel channels, and welded 316 stainless steel channels. Our customizable processing options include cutting, bending, drilling, and polishing.
| Standard | ASTM A276, ASTM A479 |
|---|---|
| Grade | 0Cr17Ni12Mo2, 1.4401, SUS316 |
| Height & Width & Thickness | 2" x 1" x 0.2" to 8" x 3" x 0.4", Customized |
| Weight per Unit Length | 2.5 lbs/ft to 18.5 lbs/ft, Customized |
| Length | 304.8mm to 6096mm (12 in to 240 in), Customized |
| Surface Finish | 2B Finish, Bead Blasted, BR, MF, MR, No. 4 Finish, Pickled Finish, PL, Satin |
| Form | Cold-Rolled Channel, Extruded Channel, Hot-Rolled Channel, Laser-Fused Channel, Press-Braked Channel, Seamless Channel, Strut Channel, Welded Channel |

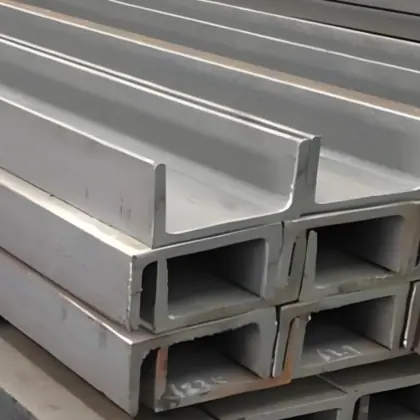

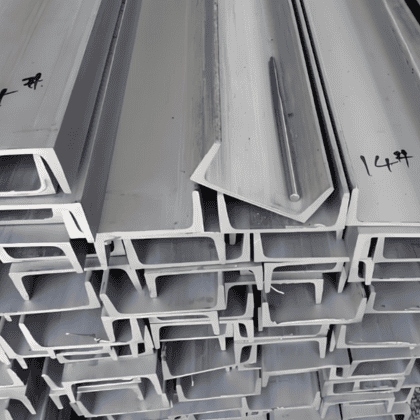

316 Stainless Steel Channel
316 Stainless Steel Channel

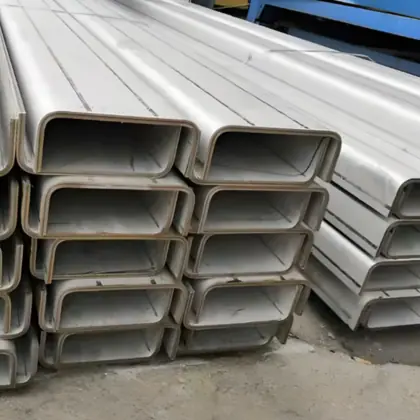

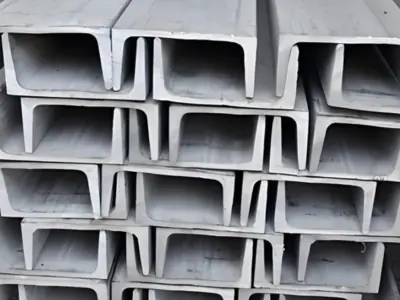

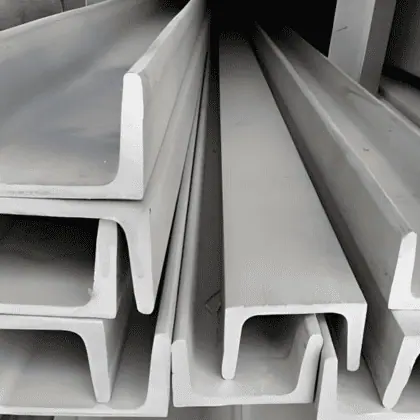

316 stainless steel channel is a type of austenitic stainless steel shaped in U or C profiles. It offers excellent corrosion resistance, high strength, good weldability, and durability. This channel is widely used in marine environments, chemical processing equipment, food and beverage production, and structural supports in construction.
Business Terms
Business Terms
| Terms | Specification |
|---|---|
| Minimum Order Quantity: | 5 Tons |
| Price: | To be negotiated |
| Packaging Details: |
As Requested
|
| Delivery Time: | Within 7-10 Working Days |
| Payment Terms: | T/T, L/C, Credit Card |
| Supply Ability: | 100000 Tons per month |
| Certification: | RoHS, BIS, SABS, tisi, KS, JIS, ISO9001 |
| Export To: |
afghanistan, albania, algeria, american samoa, andorra, angola, anguilla, antigua and barbuda, argentina, armenia, australia, austria, azerbaijan, bahamas, bahrain, bangladesh, belarus, belgium, belize, benin, bhutan, bolivia, bosnia and herzegovina, botswana, brazil, brunei darussalam, bulgaria, burkina faso, burundi, cambodia, cameroon, canada, cape verde, central african republic, chad, chile, colombia, congo, india, united kingdom, united states, etc.
|
Chemical Compositions
Chemical Compositions
| Element | Carbon (C) | Manganese (Mn) | Silicon (Si) | Phosphorus (P) | Sulfur (S) | Chromium (Cr) | Nickel (Ni) | Molybdenum (Mo) | Nitrogen (N) | Iron (Fe) |
|---|---|---|---|---|---|---|---|---|---|---|
| Range | 0.08% max | 2.00% max | 0.75% max | 0.045% max | 0.03% max | 16.00-18.00% | 10.00-14.00% | 2.00-3.00% | 0.10% max | Balance |
Mechanical Properties
Mechanical Properties
| Property | Metric Unit | Imperial Unit |
|---|---|---|
| Tensile Strength | 515-690 MPa | 75-100 ksi |
| Yield Strength | 205 MPa | 30 ksi |
| Vickers Hardness | 152 HV | 152 HV |
| Brinell Hardness | 146 HB | 146 HB |
| Rockwell Hardness | B79 | B79 |
| Elongation | 40% | 40% |
| Elastic Modulus | 193-200 GPa | 28-29 x 10^6 psi |
Heat Treatment
Heat Treatment
- Annealing
- Temperature: 1010-1120°C (1850-2050°F)
- Process: Heat and then cool rapidly, typically in water or air.
- Stress Relieving
- Temperature: 400-450°C (750-850°F)
- Process: Heat for 1-2 hours, then cool in air.
- Hardening
- Temperature: Less common
- Process: Not applicable for 316 stainless steel, as it is not hardenable by heat treatment.
- Tempering
- Temperature: Less common
- Process: Not typically performed on 316 stainless steel, as it is already in a stable form after annealing.
- Solution Treatment
- Temperature: 1010-1120°C (1850-2050°F)
- Process: Heat until uniform, then quench rapidly to maintain corrosion resistance.
Characteristic
Characteristic
Here are the characteristics of 316 Stainless Steel Channel:
- Corrosion Resistance: Excellent in marine and acidic environments.
- Strength: High tensile and yield strength.
- Weldability: Good, suitable for most welding methods.
- Durability: Long-lasting in harsh conditions.
- Formability: Can be easily formed and fabricated.
- Temperature Resistance: Performs well in high temperatures.
- Non-Magnetic: Generally non-magnetic in annealed condition.
Our Service
Our Service

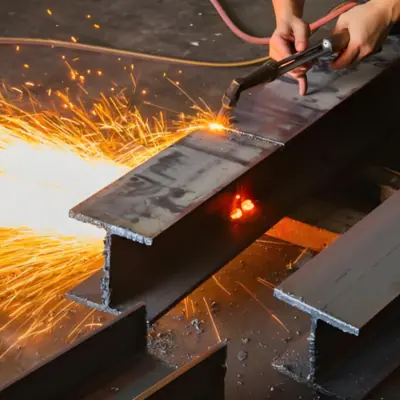

1.Welding
2.Metal Fabrication
3.CNC Machining
4.Lathe
5.Forming
6.OEM/ODM
7.Quenching
8.Tempering
UT And Hardness Testing
UT And Hardness Testing
UT And Hardness Testing Info
Surface Finish
Surface Finish

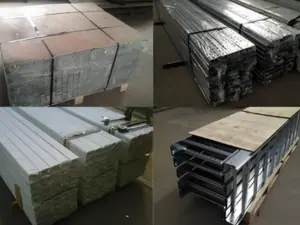

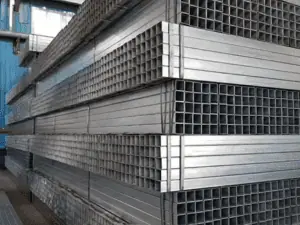

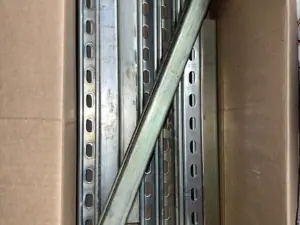

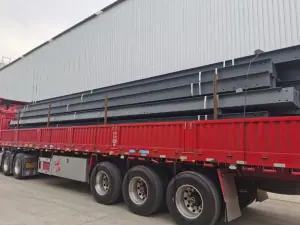

Packing
Packing
- Custom Packaging: We provide tailored packaging solutions to meet your specific requirements.
- Protection Against Damage: Channels are wrapped and secured to prevent scratches and dents during transit.
- Corrosion Prevention: We use moisture-resistant materials to protect against corrosion during shipping.
Why Choose Us
Why Choose Us
SteelPRO Group is a Manufacturer and solutions provider for specialty steel, offering custom services and 100% quality assurance!
Choose us and we can offer you:
-
Ample Stock: Large inventory with custom services. Includes special sizes, surface finishes, and processing services.
-
Global Coverage: A global supply chain and service network to meet the needs of international customers.
-
Quick Response: Fast response within 24 hours for quotations, and professional technical support and after-sales service. Lifetime warranty.
-
Compliance and Certification: Products meet ASTM standards, with SGS or TUV certificates. Each package is labeled for easy identification.
-
Diverse Shipping Options: Choose from FOB, CFR, and CIF shipping methods. Select the best terms to optimize costs and ensure safety.
