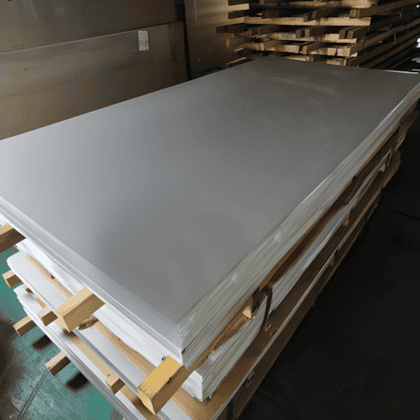

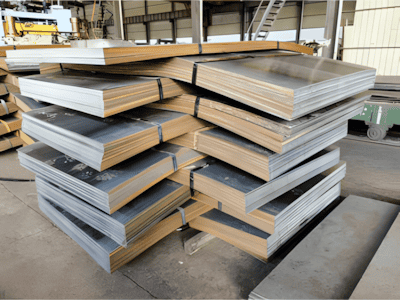

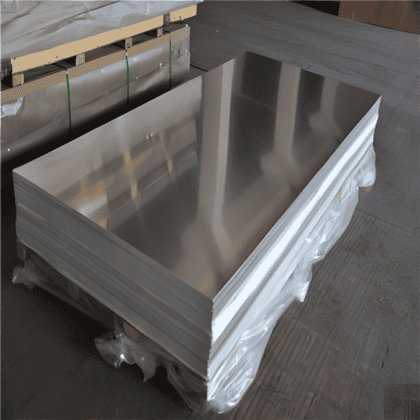

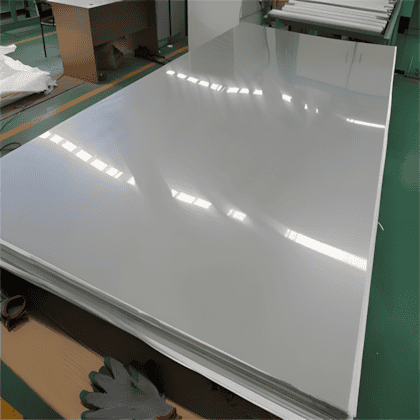

317L Stainless Steel Plate | Sheet
317L Stainless Steel Plate | Sheet
| Standard | ASTM A240, ASTM A269, ASTM A312 |
|---|---|
| Grade | 1.4438, SUS317L |
| Thickness | 0.5 mm (0.018 in) to custom-thickness, Customized |
| Length | 2,440 mm(96 in) to 6,100 mm(240 inches), Customized |
| Surface Finish | 2B Finish, BA Finish, No. 8 (Mirror) Finish |
| Technique | Hot Rolled, Cold Rolled |
| Form | Chequered Plates, Coil, Custom Plates and Sheets, Embossed Plates and Sheets, Perforated Plates and Sheets, Standard Plates and Sheets |
317L Stainless Steel Plate | Sheet
317L Stainless Steel Plate | Sheet
Business Terms
Business Terms
| Terms | Specifications |
|---|---|
| Minimum Order Quantity： | 5 Tons |
| Price: | To be negotiated |
| Packaging Details: |
As Requested
|
| Delivery Time: | Within 7-10 Working Days |
| Payment Terms: | T/T, L/C, Credit Card |
| Supply Ability: | 100000 Tons per month |
| Certification: | RoHS, BIS, SABS, tisi, KS, JIS, ISO9001 |
| Export To: |
United States, Korea, Russia
|
Chemical Compositions
Chemical Compositions
| Element | Cr | Ni | Mo | C | Mn | Si | P | S | N | Fe |
|---|---|---|---|---|---|---|---|---|---|---|
| Composition (%) | 18.0 – 20.0 | 11.0 – 15.0 | 3.0 – 4.0 | 0.030 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 0.10 max | Balance |
Mechanical Properties
Mechanical Properties
| Mechanical Property | Value(Metric) | Value(Imperial) |
|---|---|---|
| Tensile Strength | 515 MPa | 75 ksi |
| Yield Strength | 205 MPa | 30 ksi |
| Vickers Hardness (HV) | 140 – 190 | 140 – 190 |
| Brinell Hardness (HB) | 146 – 200 | 146 – 200 |
| Rockwell Hardness (HRC) | 70 – 95 | 40 |
| Elongation | 40% | 35% |
| Elastic Modulus | 193 GPa | 28,000 ksi |
Heat Treatment
Heat Treatment
- Solution Annealing
- Heat to 1010°C to 1120°C (1850°F to 2050°F) and hold at the temperature. Then rapidly cooled by water quenching.
- Restores corrosion resistance and ductility.
- Stress Relieving
- Heat to 205°C to 425°C (400°F to 800°F) and hold to reduce residual stresses from welding or cold working. Cool slowly in the air.
- Reduces residual stresses and improves stability.
- Quenching
- After solution annealing, rapidly cool by water quenching to prevent carbide precipitation.
- Maintains corrosion resistance.
Characteristic
Characteristic
- Exceptional Corrosion Resistance: Ideal for use in acidic and corrosive environments.
- Robust Strength and Toughness: Despite their strength, they maintain good ductility, allowing for effective forming and fabrication.
- Excellent Temperature Resistance: Retain their mechanical properties and resist oxidation at elevated temperatures.
- Superior Surface Quality: The cold-rolled process used for sheets and the controlled hot-rolled process for plates ensure a smooth and uniform finish.
- Versatile Fabrication Ease: Simple to weld, cut, and form.
- Eco-Friendly Recyclability: Fully recyclable, contributing to sustainable manufacturing and reduced environmental impact.
Our Service
Our Service
1.Welding
2.Metal Fabrication
3.CNC Machining
4.Lathe
5.Forming
6.OEM/ODM
7.Quenching
8.Tempering
UT And Hardness Testing
UT And Hardness Testing
UT And Hardness Testing Info
Surface Finish
Surface Finish
2B Surface
2D Surface
BA Surface
6K Surface
8K Surface
HL Surface
NO.1 Surface
NO.4 Surface
Embossed Surface
Packing
Packing
To deliver your 317L stainless steel plates and sheets in perfect condition, our packaging solutions adhere to international shipping and safety standards. We regularly perform quality checks on our packaging process to ensure that your order meets all regulatory requirements.
- Prevent Deformation: Apply protective film to prevent surface scratches and damage, which can be easily removed once the product reaches its destination. Reinforce corner and edge protectors to prevent damage during handling and shipping.
- Moisture and Corrosion Prevention: Use moisture-resistant materials to protect stainless steel from rust and corrosion during transit. Vacuum-sealed packaging is also used.
- Stable Bundling: Use steel strapping to secure plates and sheets and prevent shifting. Pad materials between sheets to avoid scratches and dents
- Customized Packaging: Our packaging solutions are tailored to fit the specific dimensions and quantities of your order, ensuring maximum protection and ease of handling.
- Proper Labeling: Each package is clearly labeled with detailed information, including pipe specifications and handling instructions, for easy identification and smooth logistics.
When you choose us for your 317L stainless steel plate and sheet needs, you can trust that your products will be delivered securely and ready for immediate use.
Why Choose Us
Why Choose Us
At SteelPRO Group, we are committed to delivering top-quality stainless steel products that meet industry standards. With years of experience in the stainless steel industry, we understand the specific needs of our clients and provide tailored solutions.
Quality Control: Our products undergo strict quality control processes to ensure they meet the highest standards of reliability and durability.
Competitive Pricing: We offer high-quality products at competitive prices, ensuring you get the best value for your investment.
Customer Support: Our knowledgeable team provides expert advice and assistance, helping you find the right product for your specific requirements.
