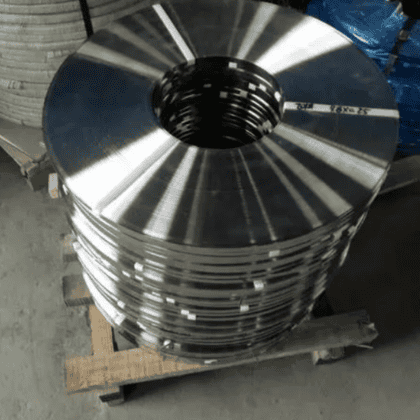

316L Stainless Steel Strip
316L Stainless Steel Strip
SteelPRO Group is a manufacturer and supplier of high-quality 316L stainless steel strips in different shapes, sizes and specifications. Our professional technical team uses high-quality raw materials and advanced machinery to manufacture these strips.
Our Product: 316L Hot-Rolled Strip, 316L Hard Strip, 1.4404 Cold-Rolled Strip, SUS316L Bright Annealed Strip, Laser-Cut Strip, Coated Strip, Spring Strip, Custom-Processed Strip, etc.
| Standard | ASTM A240, EN 1.4404, JIS G4305 |
|---|---|
| Grade | 00Cr17Ni14Mo2, 0Cr18Ni12Mo2Ti, 1.4404, SUS316L, X2CrNiMo17-12-2 |
| Thickness | 0.1 mm-6 mm( 0.004-2.36 in), Customized |
| Full Width | 10 mm-1500 mm( 3.94-590.55 in), Customized |
| Length | Customized |
| Surface Finish | 2B, 8K, BA, Customized, No. 1, NO. 4, No. 8 |
| Technique | Cold Rolling, Customized, Hot Rolling, Polishing, Welding |
| Form | 316L Stainless Steel Sheet, Plate & Coil, Annealed Strip, Cold Drawn Strip, Customized, Hot rolled strip/coil, Polished Strip |
316L Stainless Steel Strip
316L Stainless Steel Strip
316L Strip is a thin, flat 316L stainless steel that is almost identical to 316 grade strip, but with better formability, weldability, and corrosion resistance. It is used for weldments and a variety of applications that require durability and precision.
Business Terms
Business Terms
| Terms | Specification |
|---|---|
| Minimum Order Quantity: | 5 Tons |
| Price: | To be negotiated |
| Packaging Details: |
As Requested
|
| Delivery Time: | Within 7-10 Working Days |
| Payment Terms: | T/T, L/C, Credit Card |
| Supply Ability: | 100000 Tons per month |
| Certification: | RoHS, BIS, SABS, tisi, KS, JIS, ISO9001 |
| Export To: |
United States, Canada, Philippines, Australia, India, United Kingdom, Korea, Malaysia, Russian Federation, Singapore, United Arab Emirates, Brazil, Germany, Hong Kong, Indonesia, France, New Zealand, Norway, Pakistan, South Africa, Spain, Egypt, Italy, Mexico, Taiwan, Vietnam, Ireland, Israel, Netherlands, Nigeria, etc.
|
Chemical Compositions
Chemical Compositions
| Chromium (Cr) | Nickel (Ni) | Molybdenum (Mo) | Carbon (C) | Manganese (Mn) | Silicon (Si) | Phosphorus (P) | Sulfur (S) |
|---|---|---|---|---|---|---|---|
| 16.0 – 18.0% | 10.0 – 14.0% | 2.0 – 3.0% | ≤ 0.03% | ≤ 2.0% | ≤ 1.0% | ≤ 0.045% | ≤ 0.03% |
Mechanical Properties
Mechanical Properties
| Property | Metric Value | Imperial Value |
|---|---|---|
| Tensile Strength | 485 MPa (min) | 70,000 psi (min) |
| Yield Strength | 170 MPa (min) | 25,000 psi (min) |
| Vickers Hardness | 152 HV | 152 HV |
| Brinell Hardness | 146 HB | 146 HB |
| Rockwell Hardness | 80 HRB | 80 HRB |
| Elongation | 40% | 40% |
| Elastic Modulus | 193 GPa | 28 x 10^6 psi |
Heat Treatment
Heat Treatment
- Annealing：
- The strip is heated to a temperature typically in the range of 1,040°C to 1,120°C (1,900°F to 2,050°F) and then rapidly cooled (usually in water or air).
- Restores the strip’s microstructure and reduces hardness, making it easier to process.
- Stress Relief：
- The strip is heated to a temperature of around 450°C to 600°C (840°F to 1,110°F) for a period of time and then cooled in air.
- Minimizes distortion and maintains dimensional stability without significantly affecting corrosion resistance.
- Hardening and Tempering:
- 316L is not suitable for heat treatment hardening and tempering.
Characteristic
Characteristic
- Excellent corrosion resistance: 316L has high corrosion resistance, especially in chloride environments such as marine and industrial chemical environments.
- Low carbon content: The “L” in 316L stands for low carbon, which reduces the precipitation of carbides in the weld area and prevents intergranular corrosion, especially suitable for use in high temperature environments.
- Good weldability: 316L stainless steel strip does not require post-weld annealing after welding, which is suitable for thick section welding, and the weld area can maintain excellent corrosion resistance.
- High temperature oxidation resistance: 316L has good oxidation resistance in the temperature range of 870°C (1600°F) to 925°C (1700°F), and can maintain high strength in this temperature range.
- Excellent toughness and ductility: Even at low temperatures, 316L exhibits good toughness and ductility, enabling it to withstand complex forming processes such as stamping, drawing and bending.
- Surface finish: 316L can achieve high finish requirements through a variety of surface treatment technologies (such as polishing, electroplating, etc.), and is suitable for applications with high requirements on appearance.
Our Service
Our Service
1.Welding
2.Metal Fabrication
3.CNC Machining
4.Lathe
5.Forming
6.OEM/ODM
7.Quenching
8.Tempering
UT And Hardness Testing
UT And Hardness Testing
UT And Hardness Testing Info
Surface Finish
Surface Finish
Packing
Packing
At SteelPRO Group, our packaging protects the steel strips from damage during transportation, handling, and storage to the greatest extent possible, ensuring that our 316L stainless steel strips and other products arrive at your location intact and ready for use.
- Protective Packaging: Each steel strip is carefully wrapped with a protective layer to prevent scratches, abrasions, and exposure to moisture.
- Wooden Pallets: The steel strips are securely placed on sturdy wooden pallets, ensuring stability during transportation and easy handling at the destination.
- Moisture Protection: To prevent corrosion, especially during long transportation periods, we use moisture-proof materials such as VCI (Vapor Corrosion Inhibitor) paper and ensure that the packages are sealed to prevent moisture.
- Custom Packaging: Based on your specific requirements, we provide custom packaging solutions, including reinforced crates and special protective coatings for additional security.
- Labeling: Each package is clearly labeled with product details, including grade, size, weight, and handling instructions, ensuring efficient inventory management and traceability.
Why Choose Us
Why Choose Us
SteelPRO Group stands out from the competition with a range of advantages as a 316L stainless steel strip supplier and manufacturer:
- High Quality Standards: We adhere to the most stringent quality control measures and each 316L strip meets or exceeds industry standards after rigorous testing for composition, strength and surface finish.
- Comprehensive Product Range: We offer 316L strip in a wide range of sizes, thicknesses and surface finishes to suit different industry needs.
- Technical Expertise: We provide personalized consultation, and our team of experts helps you select the best product for your specific requirements and provides technical support throughout the project.
- Reliable Supply Chain: With a strong and well-established supply chain, we ensure a continuous supply and timely delivery of our products.
- Competitive Pricing: Our transparent pricing structure offers competitive prices without compromising on quality, ensuring you get the best value for your investment.
- Sustainable Practices: Our manufacturing processes minimize waste, reduce energy consumption and promote recycling, ensuring our products are not only high quality, but also environmentally friendly.
